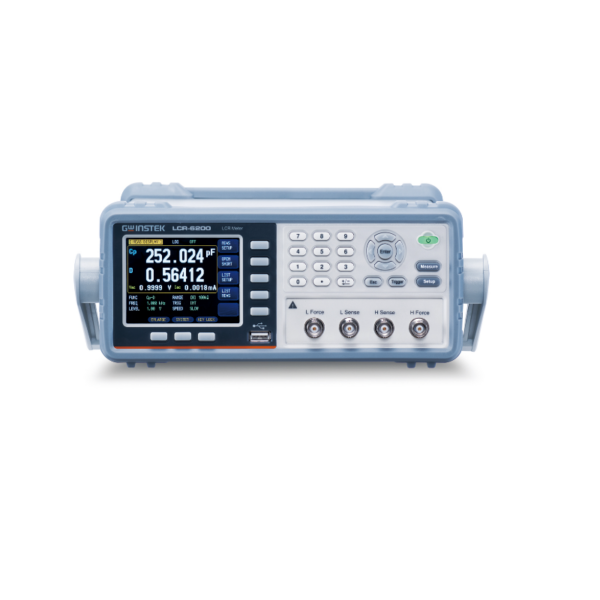

GWINSTEK LCR-6000 Precision LCR Meter



The LCR-6000 series, a compact LCR meter with diversified and abundant features, is an excellent tool for various application stages of passive components, including R&D, engineering testing, incoming inspection, etc., or the production and sorting of passive components.

High-precision LCR-6000 meter provides test frequency from 2kHz/20kHz/100kHz/200kHz/300kHz (the highest), the basic accuracy is up to 0.05%, and there are 5 models in total.​


・ 3.5” color LCD
・ 5 models (10Hz~2kHz/20kHz/100kHz/200kHz/300kHz)
・ Consecutive test frequency
・ Basic accuracy : 0.05%
・ Measuring speed up to 25ms (max.)
・ Full frequency range or spot OPEN/SHORT
・ 16 major/secondary parameter measurement combinations and two additional monitoring parameters (maximum four different parameters can be shown simultaneously)
・ DCR measurement and internal D.C. bias voltage (±2.5V)
・ PASS/FAIL judgment
・ Auto Level Control (ALC) function
・ BIN function provides 9BIN and 1AUX, totally 10 BIN
