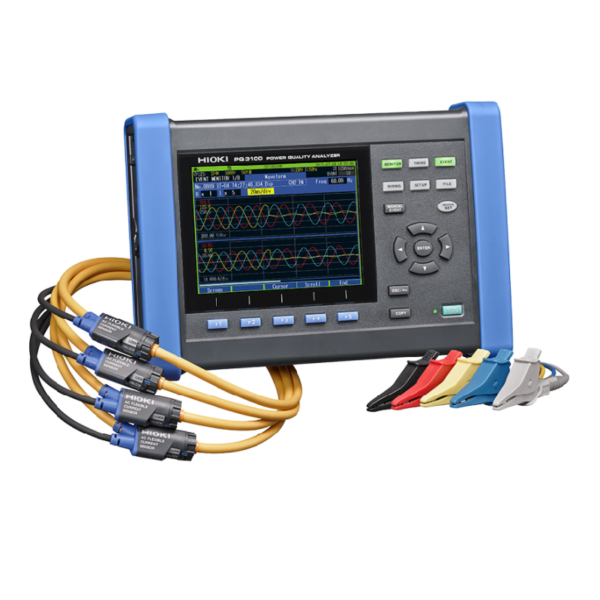

Hioki PQ3100 Power Quality Analyzer

3-Phase 4-Wire Power Quality Analyzer Compliant to IEC61000-4-30 Class S Standards and On-screen Guide to Deliver Easy Setup and Testing

Loading...

Description

With a high degree of precision and accuracy, Hioki portable power meters and analysers are the best in class when it comes to measuring single-phase and three-phase lines. The PQ3100 is an easy-to-use, comprehensive power quality analyser for monitoring and recording power supply anomalies, so that their causes are quickly investigated, as well as for assessing power supply problems such as voltage drops, flicker, or harmonics.

Key Features:

  • Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis (Flicker recording available in future firmware update)
  • Measure up to 6000 A AC
  • Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
  • Quick Set: Easy-to-understand on-screen guide for measurement procedures
  • Bundled PQ ONE application software makes it easy to create reports
  • Record waveforms for up to 1 second before and 10 seconds after an anomaly occurs
  • Accurately measure DC currents over extended periods of time (with an AC/DC auto-zero current sensor)
  • Directly supply power to connected current sensors
