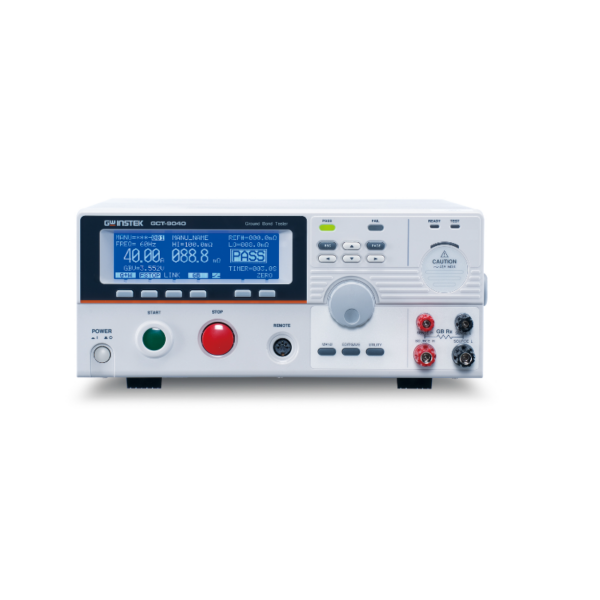

GWINSTEK GCT-9040 AC Ground Bond Tester



GW Instek rolls out40A AC ground bond tester ─ GCT-9040 to augment the existing safety tester product line and to replace the legacy model GCT-630. GCT-9040 provides the maximum AC test current of40Aand adopts the PWM design the same as other models to ensure test efficiency and reliability. Furthermore, large LCD display, 100 memory blocks from setting criteria, and programmable communications interface together deliver users with higher readability and convenience.


・ AC 40A Ground Bond Tester
・ Measuring Resistance from 1mΩ~650mΩ
・ Connect with the GPT-9800/9900 series to become a multifunctional test or simultaneous test system
・ 240×64 Ice Blue Dot Matrix LCD
・ Function Key for quick selecting
・ High intensity flash for Caution & Status indication
・ PWM switching amplifier to enhance the power efficiency and reliable testing
・ Max. 100 memory block for test condition setting.
・ Remote terminal on the front panel for “start” and “stop” remote active
・ Interface : USB device, Signal I/O and GPIB (optional)
