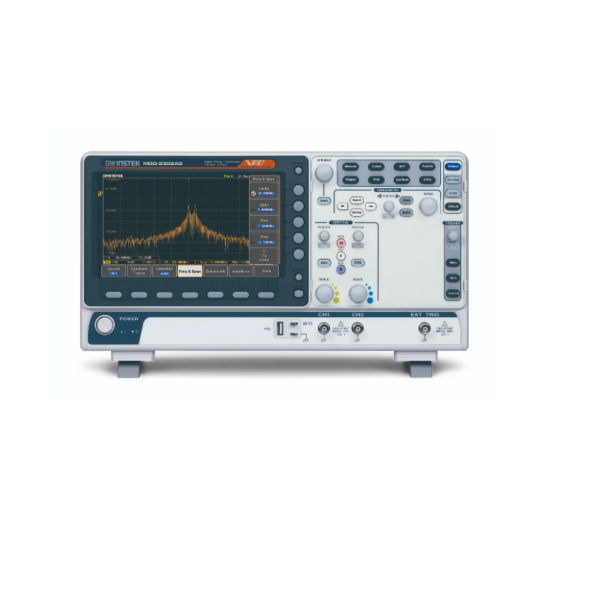

GWINSTEK MDO-2000A Series Mixed-Domain Oscilloscopes



MDO-2000A is an advanced version of MDO-2000E. The selectable bandwidth range is upgraded to 300MHz. The full bandwidth ranges include 300MHz, 200MHz and 100MHz. The sampling rate has upgraded to Max. 2GSa/s and the memory depth has also been upgraded to 20M/CH. Hence, the three major specifications of oscilloscopes have been improved. The new models of the series feature 2 channels including MDO-2000A and MDO-2000AG. The entire series offers the functions of oscilloscope and spectrum analyzer. On top of that, MDO-2000AG features a dual-channel 25MHz arbitrary waveform generator. The new generation MDO-2000A series provides better sampling rate and memory depth for users to obtain more realistic signal integrity, and higher bandwidth selections meet the measurement requirements of higher frequencies.


・ 300/200/100MHz bandwidth selections ;2 channels
・ Real time sampling rate is 2GSa/s max.
・ Per Channel 20M memory depth and VPO waveform display technology
・ Waveform update rate up to 120,000 wfms/s
・ 8 “ WVGA TFT LCD display
・ Maximum 1M FFT provides higher frequency domain resolution measurements
・ High ,low and band pass filter functions
・ 29,000 segmented memories and waveform search functions
・ I2C/UART/CAN/LIN serial bus trigger and decoding function
・ Data log function is able to track signal changes up to 1000 hours
・ Network storage function
・ Mask test function
・ MDO-2000AG equips with a dual channel 25MHz AWG
