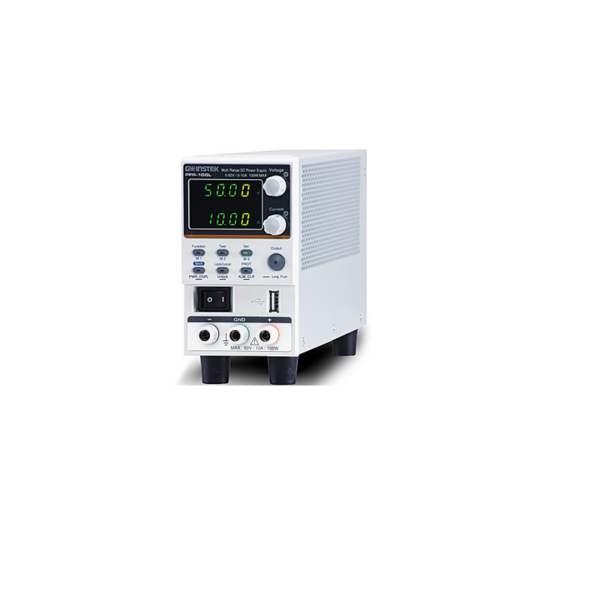

GWINSTEK PFR-100 Series Fanless Multi-Range D.C. Power Supply



The PFR-100 series, a small and high-performance programmable D.C. power supply, adopts natural convection design to dissipate heat. The fanless structure allows users to focus on their experiments and tests in a quiet environment. Fanless power supply will not suck in dust and foreign objects, therefore, PFR-100 series has a longer life cycle compared with that of power supplies with fan.

The PFR-100 series is a power supply with a five-fold rated power that allows users to self-define voltage and current under rated power conditions so as to satisfy them with wider voltage and current operational ranges. PFR-100 series, with rated 100W, provides two models: PFR-100L- maximum output voltage of 50V (at 2A) or maximum output current of 10A (at 10V); PFR-100M maximum output voltage of 250V (at 0.4A) or maximum output current of 2A (at 50V).


・ Constant Power Output for 5 Times Multi-range(V&I) Operation
・ Natural Convection Cooling Design (Fanless Structure)
・ Preset Memory Function
・ Output ON/OFF Delay Function
・ CV, CC Priority Mode
・ Adjustable Slew Rate For Voltage and Current
・ Bleeder Circuit Control
・ Protections: OVP, OCP, AC FAIL and OTP
・ Support Front and Rear Panel Output
・ Built-in USB and RS-232/485 Interface Optional LAN+GPIB
・ Web Server Monitoring and Control
